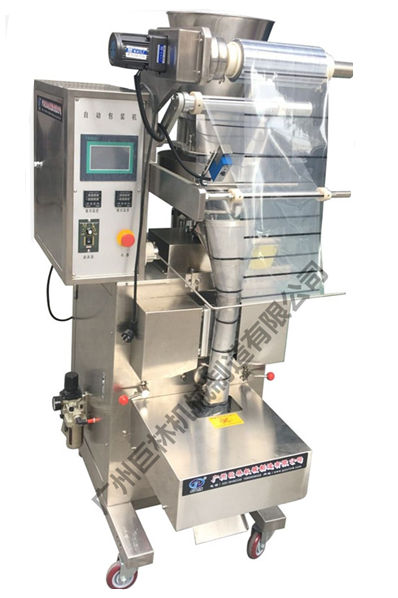

  • SJ-Y2颗粒自动包装机

  • SJ-Y2颗粒自动包装机
  • 【SJ-Y2颗粒自动包装机 】详细信息



  • 特点 Features

    背封,三边封,四边封包装形式

    包装运行数据及调节在显示屏上直观显示,直接操作

    装配光电控制装置保证包装袋图案完整

    自动完成制袋,计量,充填,封合,断切,计数,打印批号

    壳体及物料接触部位使用不锈钢材料
    Back sealing, three-side sealing, four-side packing method
    The packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
    Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
    It can automatically finish making-bag, metering, filling, sealing, cutting, counting
    and printing batch number.
    The body and the parts touching the material are made of stainless steel.

    适合物料 Suitable material

    食品,医药,化工,种子,日化行业松散状无粘性颗粒物料
    It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
    non-sticking granule daily chemical industry.

    技术规格 Technical specifications
    型号

    Type

    SJ-Y2

    SJ-Y300
    制成袋长 mm

    bag-making length

    50-170

    50-280

    制成袋宽 mm

    Bag-making width

    25-120

    70-190
    包装薄膜宽度 mm Packing film width 60-240 160-380
    包装容量 ml

    Packing capacity

    5-100

    50-1400

    包装速度 bags/min

    Packing speed

    35-70

    20-40

    功率 Kw power

    1.6

    1.65

    气源 Mpa

    air power

    0.6

    0.65
    耗气量 L/min

    air consumption

    100 100
    外形尺寸 mm

    Overall Dimension

    760×980×1800

    900×1120×2360
    整机质量 Kg

    Weight

    300 480
